03Chapter 3 · Site Design

Designed roof by roof across the villa cluster.

The supplied layouts show how the array is arranged over the Mon Loisir roofs and how the modules are grouped into electrical strings and MPPT channels.

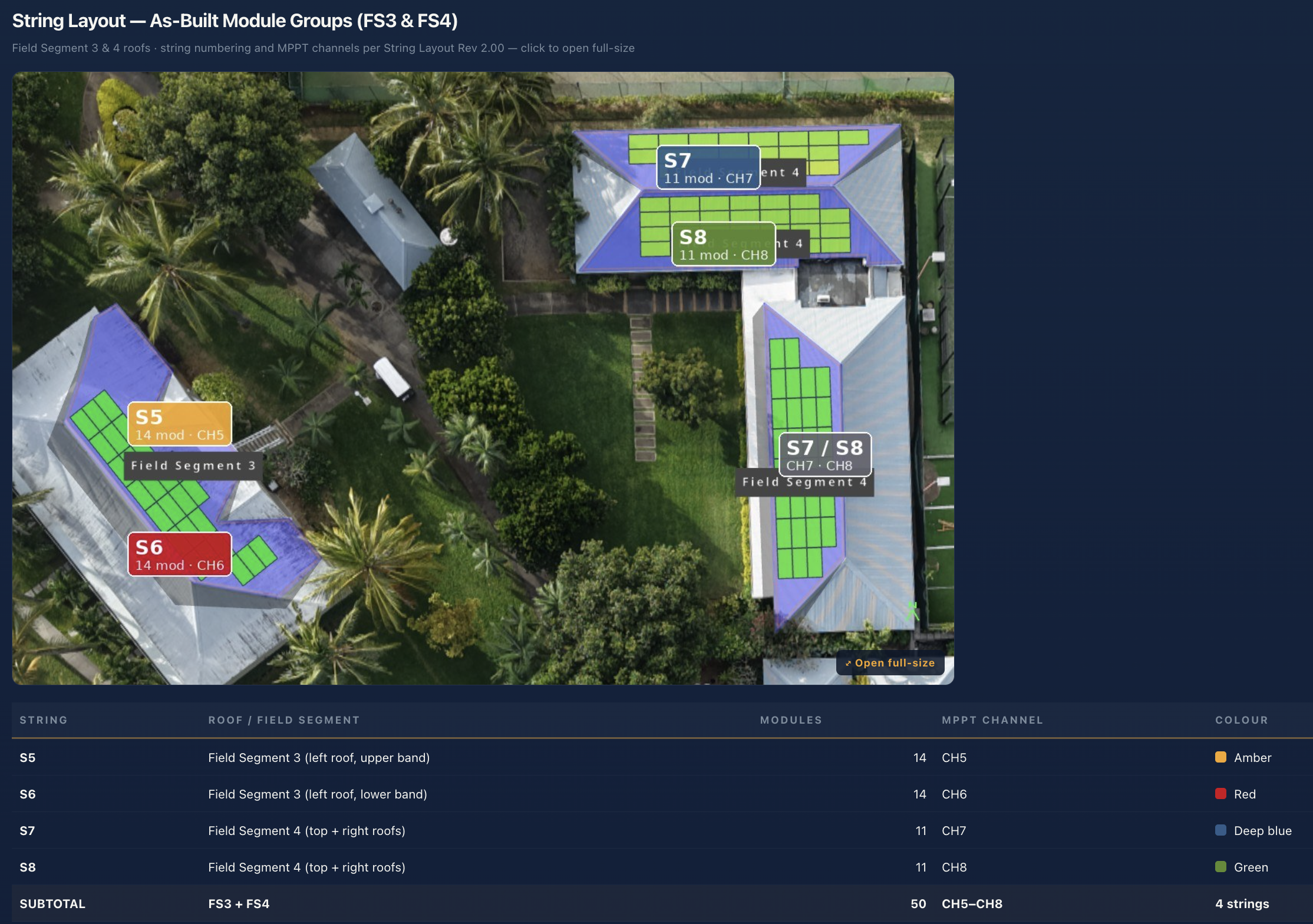

String layout — Field Segments 3 & 4

String numbering and MPPT channels as annotated on String Layout Rev 2.00.

String layout for Field Segments 3 and 4: string, field segment, location, modules, MPPT channel and colour.
String	Field segment	Roof location	Modules	MPPT	Colour
S5	Field Segment 3	Left roof, upper band	14	CH5	Amber
S6	Field Segment 3	Left roof, lower band	14	CH6	Red
S7	Field Segment 4	Top and right roofs	11	CH7	Deep blue
S8	Field Segment 4	Top and right roofs	11	CH8	Green
Subtotal · FS3 + FS4	CH5–CH8 · 4 strings		50

These four strings cover 50 of the project's 103 modules — the annotated Field Segment 3 & 4 subset, not the whole array.

A design reference, not a commissioning record

These layouts are supplied design references illustrating the intended arrangement. They do not, on their own, confirm that the system has been installed or commissioned. Commissioning status is one of the items to confirm before execution.
